airzoe AR2000-02 1/4 inch NPT air pressure regulator kit with 0-150 PSI gauge, bracket and fittings for compressed air system
Images

1/4" NPT Air Pressure Regulator, AR2000-02, 0-150 PSI Gauge

SKU: AR2000-02

Image 1 of 5

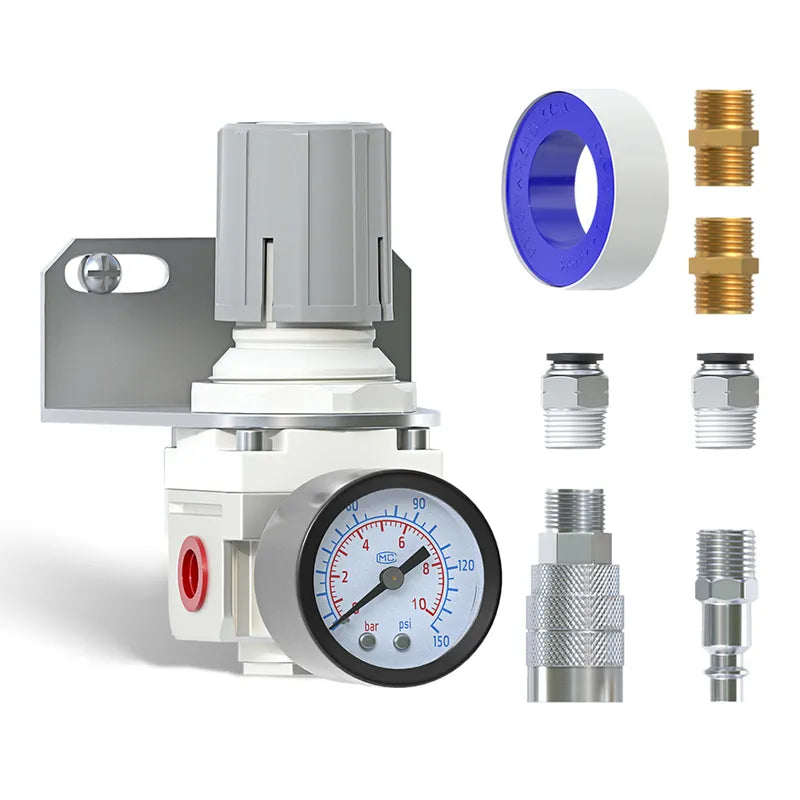

  • airzoe AR2000-02 1/4 inch NPT air pressure regulator kit with 0-150 PSI gauge, bracket and fittings for compressed air system

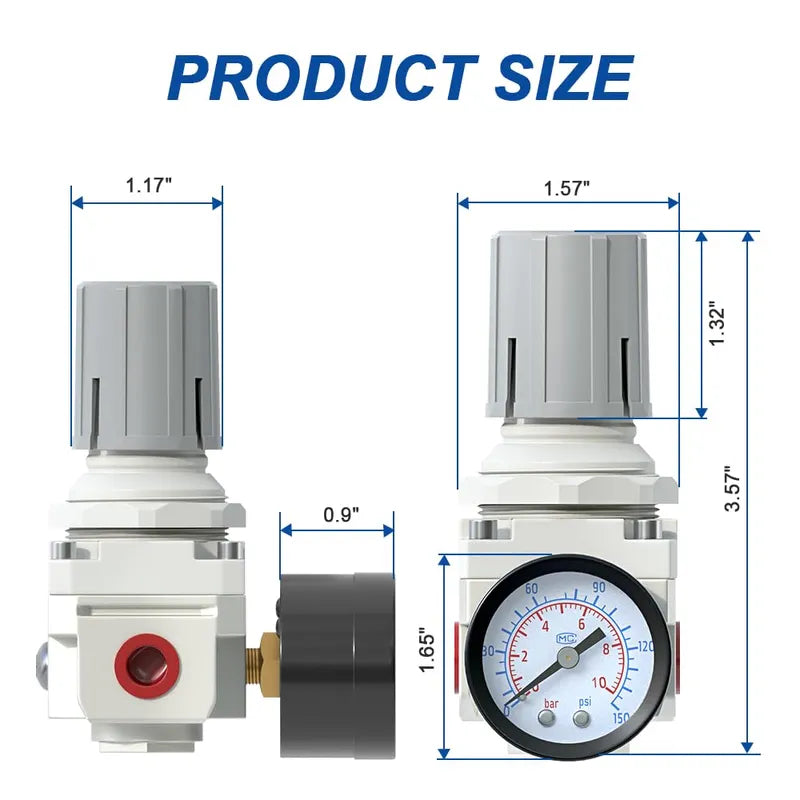

  • Size dimensions of airzoe AR2000-02 mini air regulator with 1/4 inch NPT connection and 0-150 PSI gauge

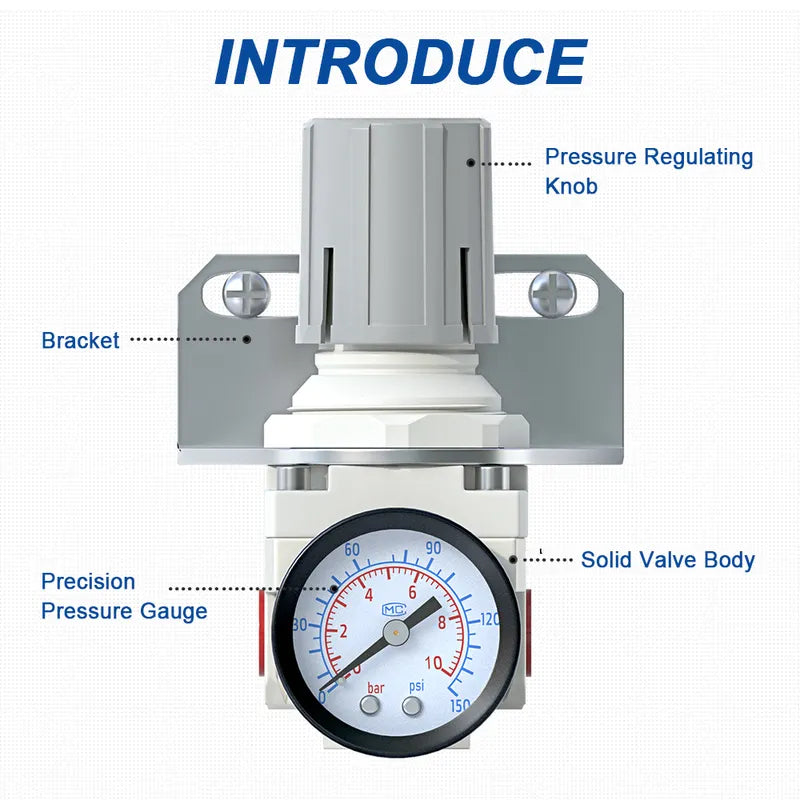

  • Parts structure of airzoe AR2000-02 air pressure regulator with pressure regulating knob, bracket, precision pressure gauge and solid valve body

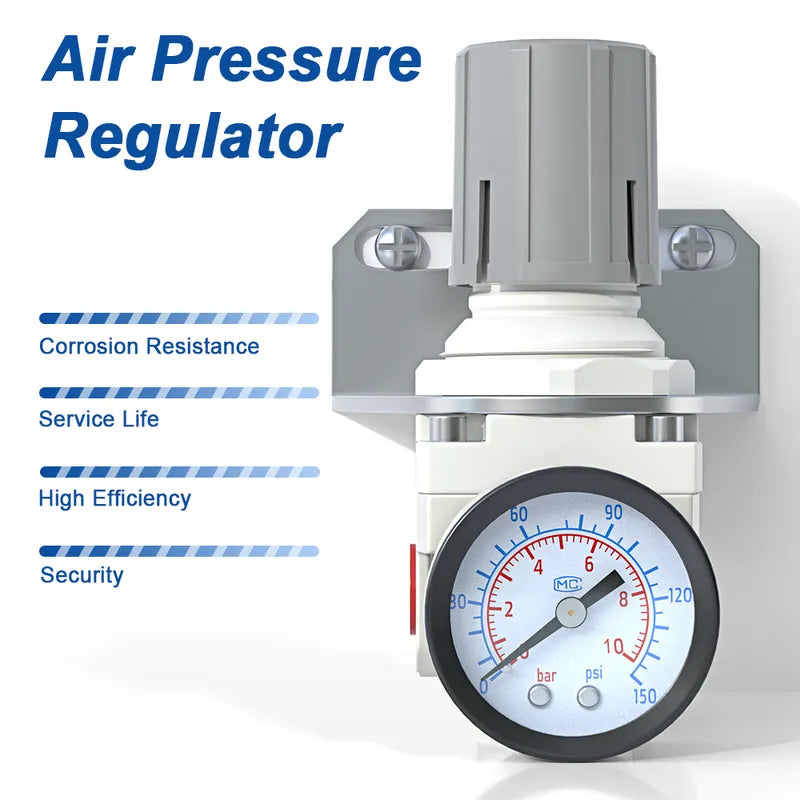

  • airzoe AR2000-02 compressed air regulator with corrosion resistance, long service life, high efficiency and 0-150 PSI gauge

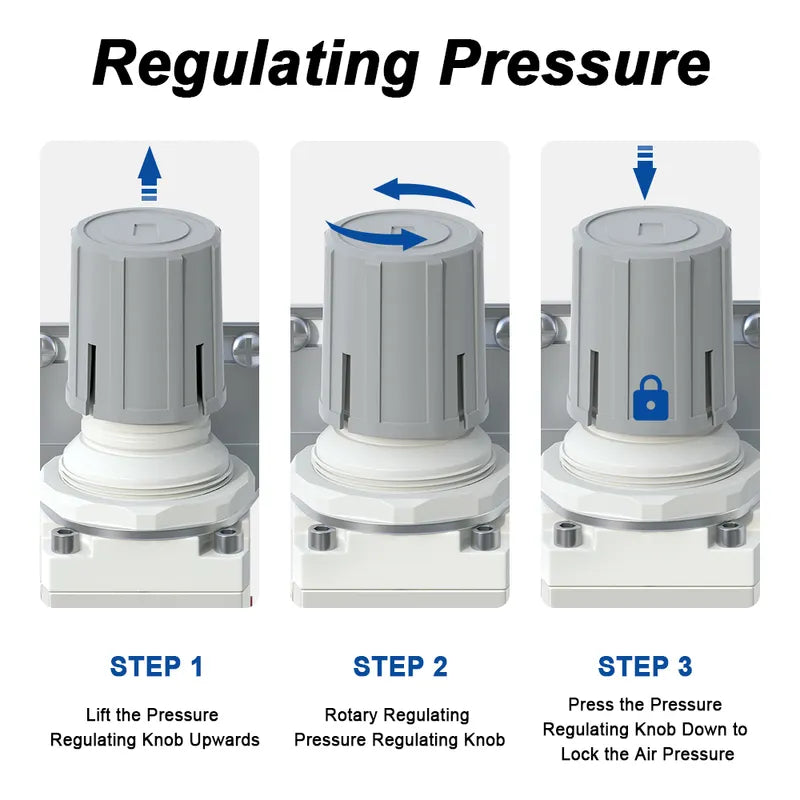

  • Pressure regulating instructions for airzoe AR2000-02 air pressure regulator showing lift, rotate and press knob steps
1/4" NPT Air Pressure Regulator, AR2000-02, 0-150 PSI Gauge

1/4" NPT Air Pressure Regulator, AR2000-02, 0-150 PSI Gauge

SKU: AR2000-02
Availability: In stock
$14.99 $20.00
Key specifications
Model
AR2000-02
Function
Pressure regulation
Working pressure
0–145 PSI

Before ordering: confirm port size, thread standard, airflow, and working pressure.
Product subtotal: $14.99

Technical specifications

Technical specifications for 1/4" NPT Air Pressure Regulator, AR2000-02, 0-150 PSI Gauge
ModelAR2000-02
Product functionPressure regulation
Port size 1/4" NPT
Working pressure range0–145 PSI
Flow rate550 L/min
Temperature range41–140°F (5–60°C)
Pressure gauge range0–150 PSI
Product packageIncludes polycarbonate bowl, 0-150 psi gauge and bracket, pair of metal air coupler and plug kit, 2 x 1/4" NPT fitting, 2 x PC1/4"-N02(1/4" Tube OD x 1/4" NPT Thread),1 x Thread sealing tape.

Swipe horizontally to view the complete table.

1/4" NPT Air Pressure Regulator, AR2000-02, 0-150 PSI Gauge product details

Shipping availability, order handling, delivery details, and any applicable limitations are described in AIRZOE's current shipping policy.

Return eligibility, item-condition requirements, and the return process are described in the current return and refund policy.

Selection checklist

Confirm the fit before you order

Use the specifications on this product page as the primary reference. Similar-looking models may differ in connection size, drain design, airflow, pressure range, or included items.

01

Port & thread

Confirm the nominal port size and thread standard of the system or fitting.

Port size guide →
02

Airflow & pressure

Compare application demand and operating pressure with the listed product data.

Airflow guide →
03

Function

Verify whether the application needs filtration, regulation, lubrication, or a combination.

Selection guide →
04

Drain & service

Choose the drain arrangement and maintenance access that fit the installation.

Drain type guide →
Installation reminderFollow flow-direction markings, isolate and depressurize the system before service, and do not exceed the product's listed operating limits.Ask AIRZOE
