airzoe AC2110-02 1/4 inch NPT double air compressor filter and air pressure regulator combo kit with 0-145 PSI gauge, 5 micron brass element, semi-auto drain and fittings
Images

1/4" NPT Air Dryer Water Separator Combo, AC2110-02, 5 Micron, Semi-Auto Drain

SKU: AC2110-02

Image 1 of 5

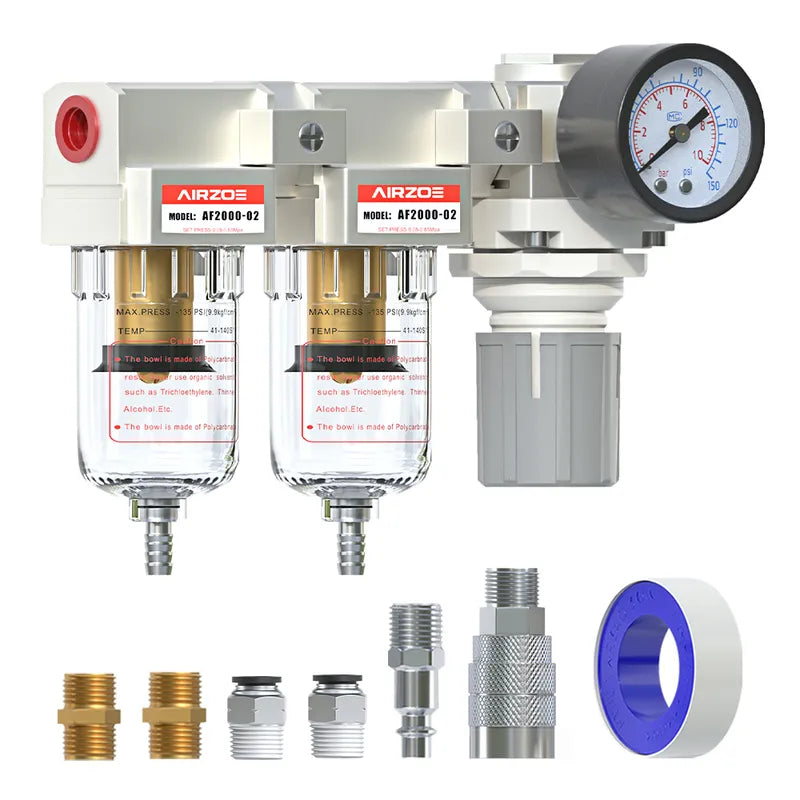

  • airzoe AC2110-02 1/4 inch NPT double air compressor filter and air pressure regulator combo kit with 0-145 PSI gauge, 5 micron brass element, semi-auto drain and fittings

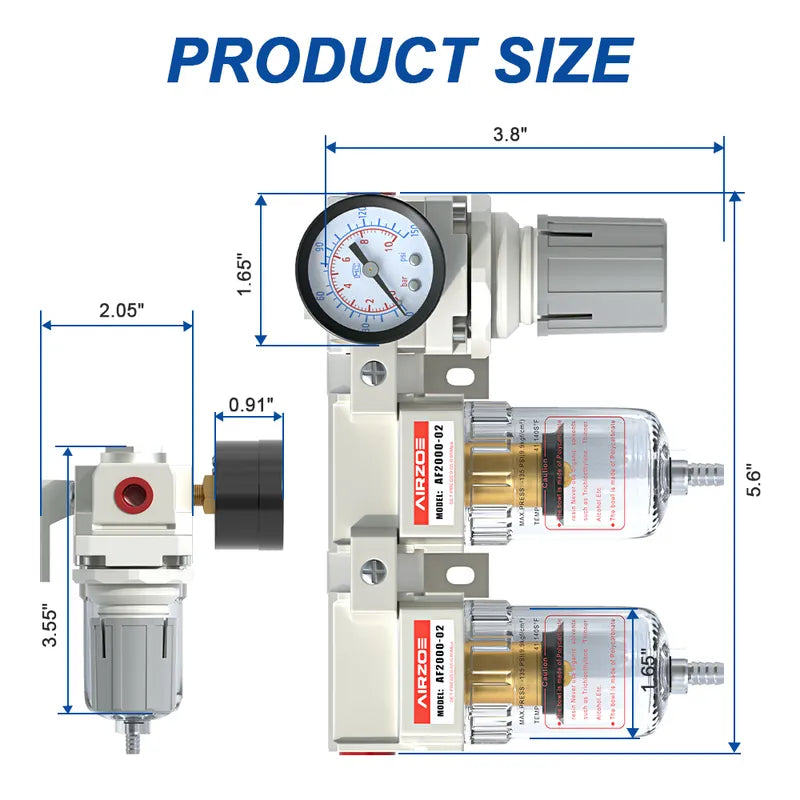

  • Size dimensions of airzoe AC2110-02 1/4 inch NPT double air compressor filter and air pressure regulator combo with 0-145 PSI gauge

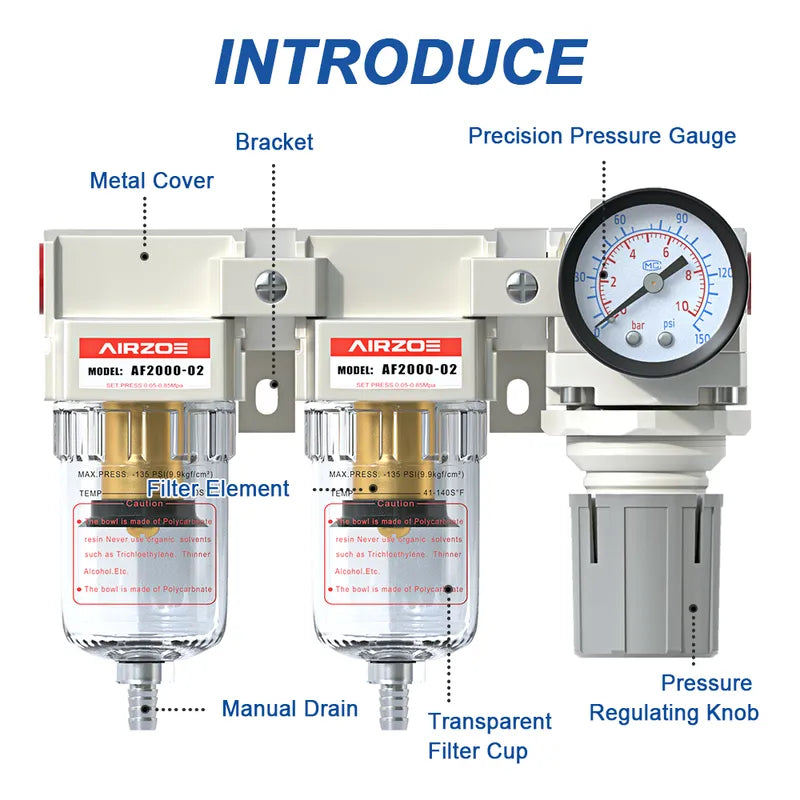

  • Parts structure of airzoe AC2110-02 double air compressor filter and pressure regulator combo with metal cover, filter element, transparent filter cup, pressure gauge and semi-auto drain

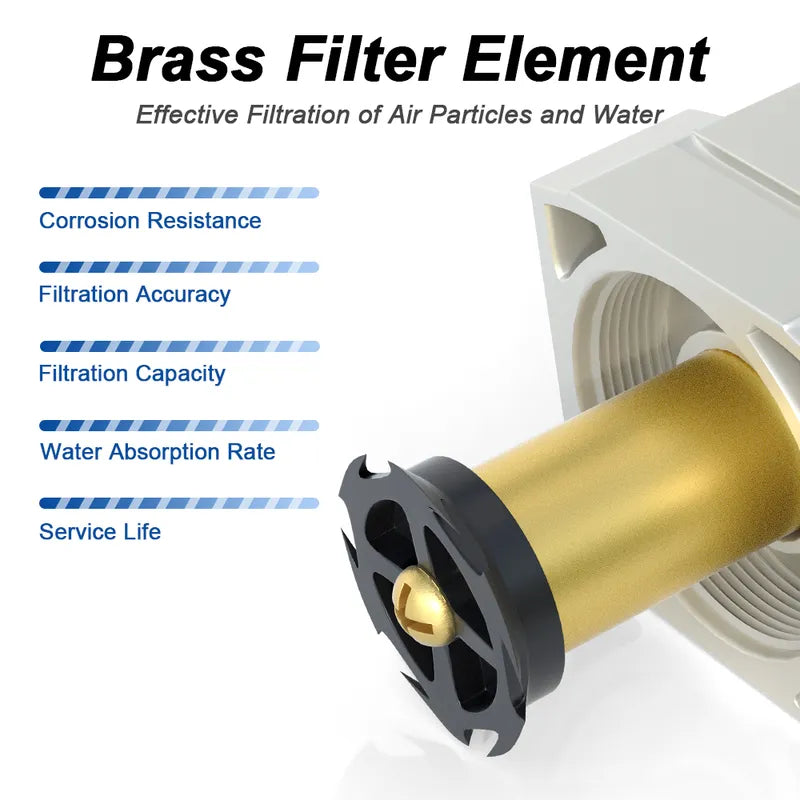

  • 5 micron brass filter element of airzoe AC2110-02 double air compressor filter for separating water and filtering air particles

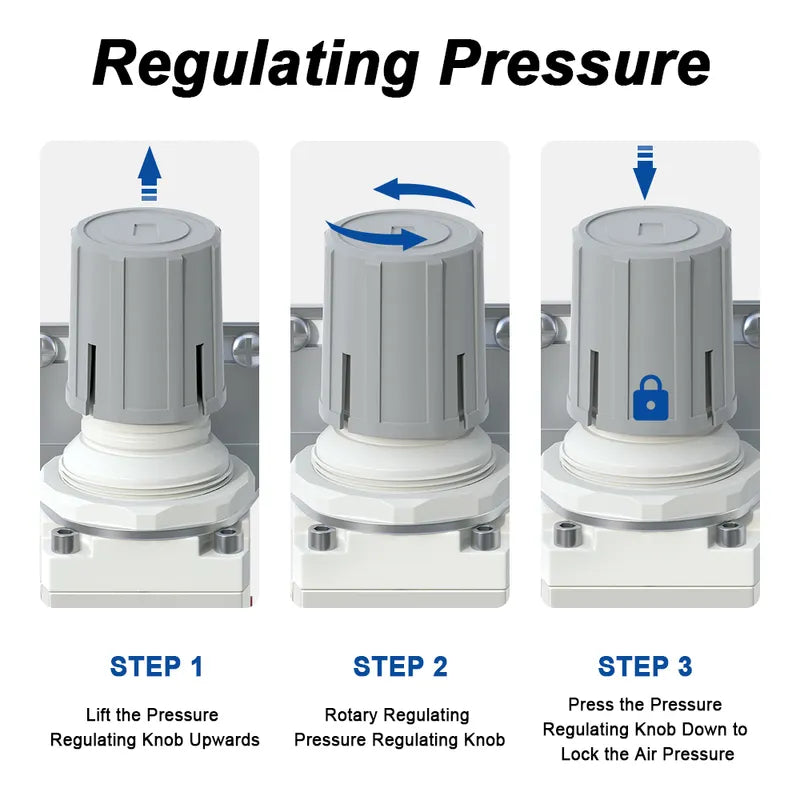

  • Pressure regulating instructions for airzoe AC2110-02 air pressure regulator combo showing lift, rotate and press knob steps
1/4" NPT Air Dryer Water Separator Combo, AC2110-02, 5 Micron, Semi-Auto Drain

1/4" NPT Air Dryer Water Separator Combo, AC2110-02, 5 Micron, Semi-Auto Drain

SKU: AC2110-02
Availability: In stock
$25.99
Key specifications
Model
AC2110-02
Function
Staged filtration and pressure regulation
Filtration
5 Micron
Working pressure
0–145 PSI

Before ordering: confirm port size, thread standard, airflow, and working pressure.
Product subtotal: $25.99

Technical specifications

Technical specifications for 1/4" NPT Air Dryer Water Separator Combo, AC2110-02, 5 Micron, Semi-Auto Drain
ModelAC2110-02
Product functionStaged filtration and pressure regulation
Port size 1/4" NPT
Drain typeSemi-Auto Drain
Filtration5 Micron
Working pressure range0–145 PSI
Flow rate500 L/min
Temperature range41–140°F (5–60°C)
Pressure gauge range0–150 PSI
Product packageIncludes polycarbonate bowl, 0-150 psi gauge and bracket, pair of metal air coupler and plug kit, 2 x 1/4" NPT fitting, 2 x PC 1/4"-N02(1/4" Tube OD x 1/4" NPT Thread),1 x Thread sealing tape.We provide accessories according to the user's use, which can be adapted to a variety of application scenarios.

Swipe horizontally to view the complete table.

1/4" NPT Air Dryer Water Separator Combo, AC2110-02, 5 Micron, Semi-Auto Drain product details

Shipping availability, order handling, delivery details, and any applicable limitations are described in AIRZOE's current shipping policy.

Return eligibility, item-condition requirements, and the return process are described in the current return and refund policy.

Selection checklist

Confirm the fit before you order

Use the specifications on this product page as the primary reference. Similar-looking models may differ in connection size, drain design, airflow, pressure range, or included items.

01

Port & thread

Confirm the nominal port size and thread standard of the system or fitting.

Port size guide →
02

Airflow & pressure

Compare application demand and operating pressure with the listed product data.

Airflow guide →
03

Function

Verify whether the application needs filtration, regulation, lubrication, or a combination.

Selection guide →
04

Drain & service

Choose the drain arrangement and maintenance access that fit the installation.

Drain type guide →
Installation reminderFollow flow-direction markings, isolate and depressurize the system before service, and do not exceed the product's listed operating limits.Ask AIRZOE
