airzoe AC5000-10 1 inch NPT air compressor filter, regulator and lubricator combo kit with 0-150 PSI gauge, 5 micron brass element, semi-auto drain and fittings
Images

1" NPT FRL Air Filter Regulator Lubricator, AC5000-10, 5 Micron, Semi-Auto Drain

SKU: AC5000-10

Image 1 of 6

  • airzoe AC5000-10 1 inch NPT air compressor filter, regulator and lubricator combo kit with 0-150 PSI gauge, 5 micron brass element, semi-auto drain and fittings

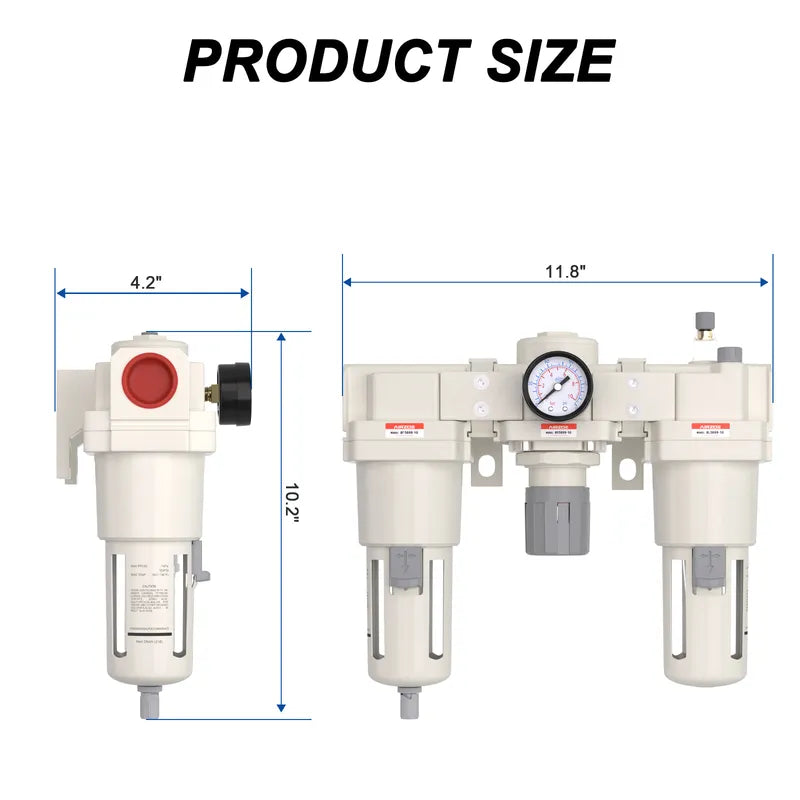

  • Size dimensions of airzoe AC5000-10 1 inch NPT FRL filter regulator lubricator combo for compressed air systems
  • Parts structure of airzoe AC5000-10 FRL combo with filter body, solid valve body, metal gauge, pressure regulating knob, oil volume adjustment and semi-auto drain

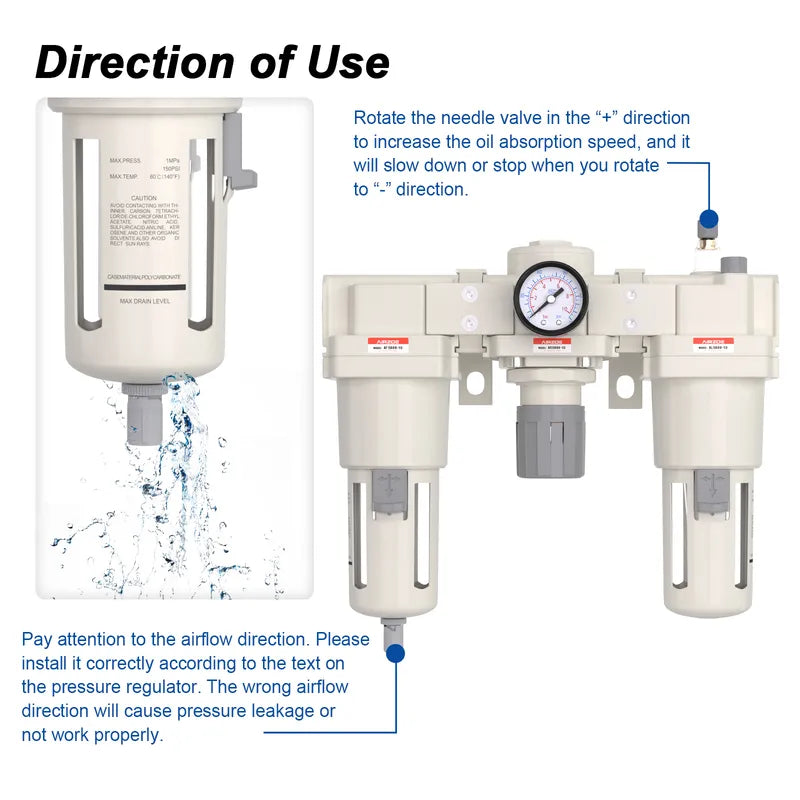

  • Airflow direction and oil volume adjustment warning for airzoe AC5000-10 air compressor filter regulator lubricator combo

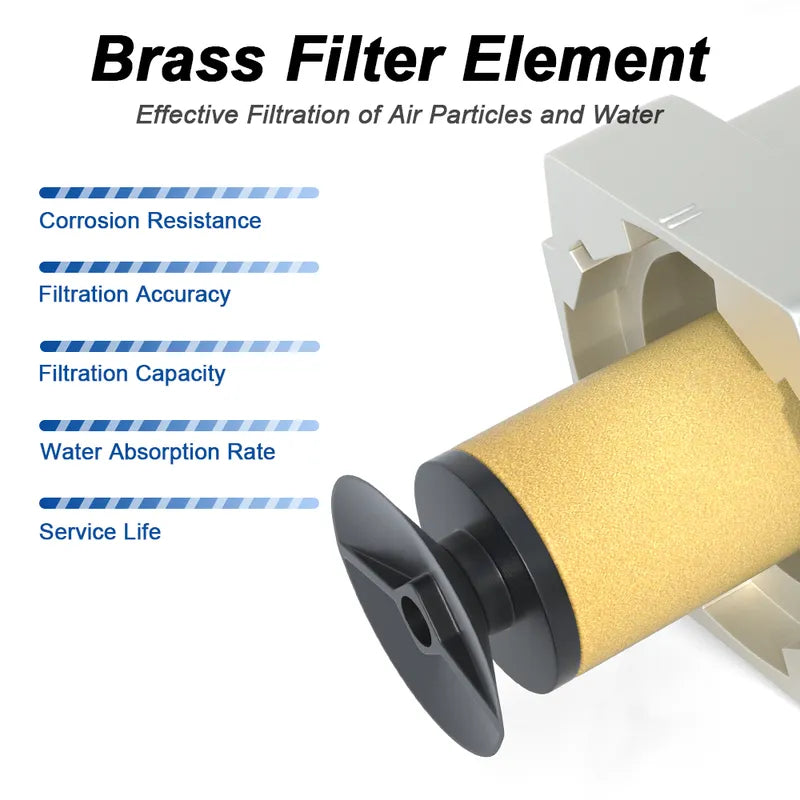

  • 5 micron brass filter element of airzoe AC5000-10 FRL combo for water oil separation and filtering air particles

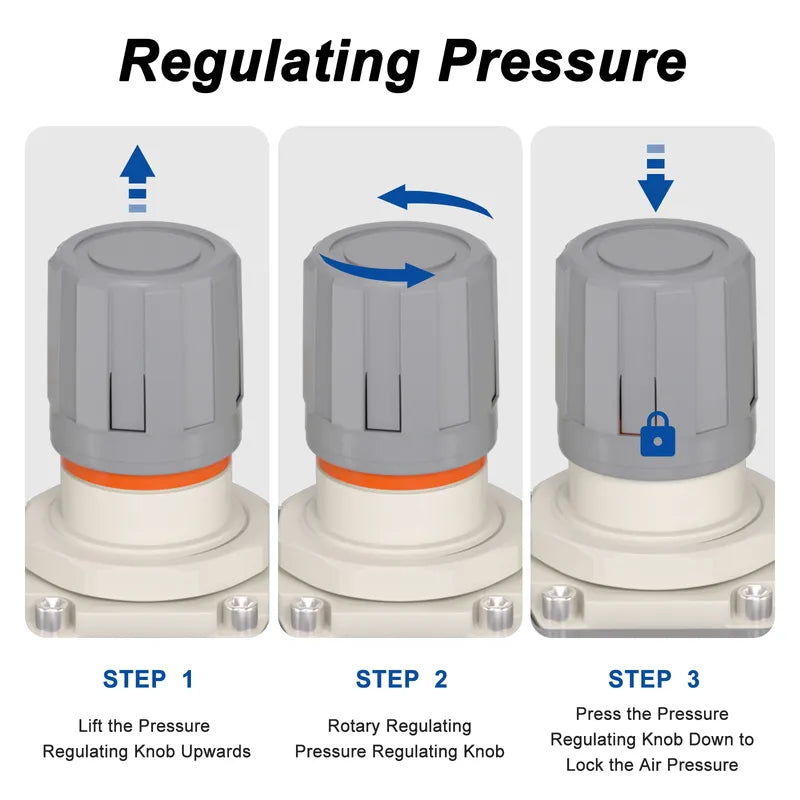

  • Pressure regulating instructions for airzoe AC5000-10 air compressor filter regulator lubricator combo showing lift, rotate and press knob steps
1" NPT FRL Air Filter Regulator Lubricator, AC5000-10, 5 Micron, Semi-Auto Drain

1" NPT FRL Air Filter Regulator Lubricator, AC5000-10, 5 Micron, Semi-Auto Drain

SKU: AC5000-10
Availability: In stock
$67.99
Key specifications
Model
AC5000-10
Function
Filtration, pressure regulation, and lubrication
Filtration
5 Micron
Working pressure
0–145 PSI

Before ordering: confirm port size, thread standard, airflow, and working pressure.
Product subtotal: $67.99

Technical specifications

Technical specifications for 1" NPT FRL Air Filter Regulator Lubricator, AC5000-10, 5 Micron, Semi-Auto Drain
ModelAC5000-10
Product functionFiltration, pressure regulation, and lubrication
Port size 1" NPT
Drain typeSemi-Auto Drain
Filtration5 Micron
Working pressure range0–145 PSI
Flow rate5,000 L/min
Temperature range41–140°F (5–60°C)
Pressure gauge range0–150 PSI
Product packageIncludes polycarbonate bowl, 0-150 psi gauge and bracket, 2 x 1" NPT fitting,1 x Thread sealing tape

Swipe horizontally to view the complete table.

1" NPT FRL Air Filter Regulator Lubricator, AC5000-10, 5 Micron, Semi-Auto Drain product details

Shipping availability, order handling, delivery details, and any applicable limitations are described in AIRZOE's current shipping policy.

Return eligibility, item-condition requirements, and the return process are described in the current return and refund policy.

Selection checklist

Confirm the fit before you order

Use the specifications on this product page as the primary reference. Similar-looking models may differ in connection size, drain design, airflow, pressure range, or included items.

01

Port & thread

Confirm the nominal port size and thread standard of the system or fitting.

Port size guide →
02

Airflow & pressure

Compare application demand and operating pressure with the listed product data.

Airflow guide →
03

Function

Verify whether the application needs filtration, regulation, lubrication, or a combination.

Selection guide →
04

Drain & service

Choose the drain arrangement and maintenance access that fit the installation.

Drain type guide →
Installation reminderFollow flow-direction markings, isolate and depressurize the system before service, and do not exceed the product's listed operating limits.Ask AIRZOE
